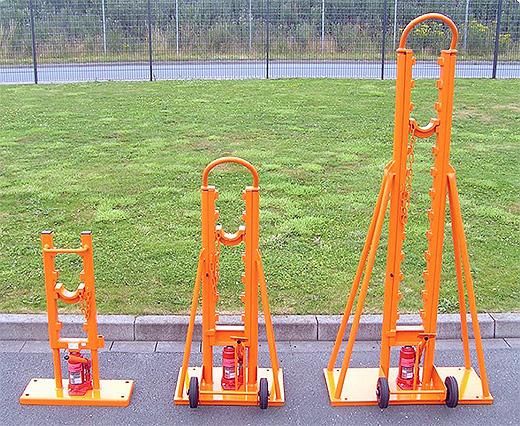

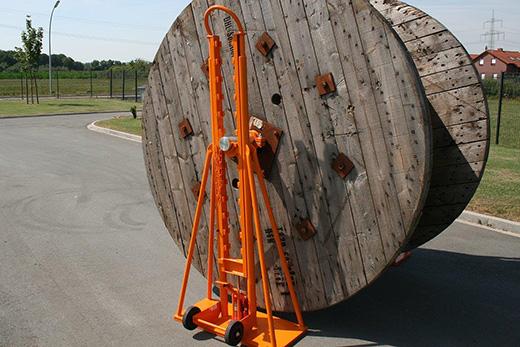

Hydraulic Drum Jack
MITTCO offers lightweight hydraulic drum jacks, which are extremely useful in the cable yard. MITTCO offers a variety of jacks with different specifications, with excellent all-round stability, fitted with wheels to be easily moved by one person.
- High stability
- Hydraulic jack with chromium-plated piston rod
- Only short stroke necessary due to height-adjustable carrier shell
- Mobile
| Technical Data | Type 20 hydr. | Type 30 hydr. | Type 50 hydr. |
| Payload per pair mix. | 4000 kg | 6000 kg | 10000 kg |
| Drum diameter (min. – max.) | 900-1600 mm | 900-2100 mm | 900-3200 mm |
| Weight per jack | 20 kg | 46 kg | 69 kg |
| Order-no. | 77146 | 01151 | 01152 |

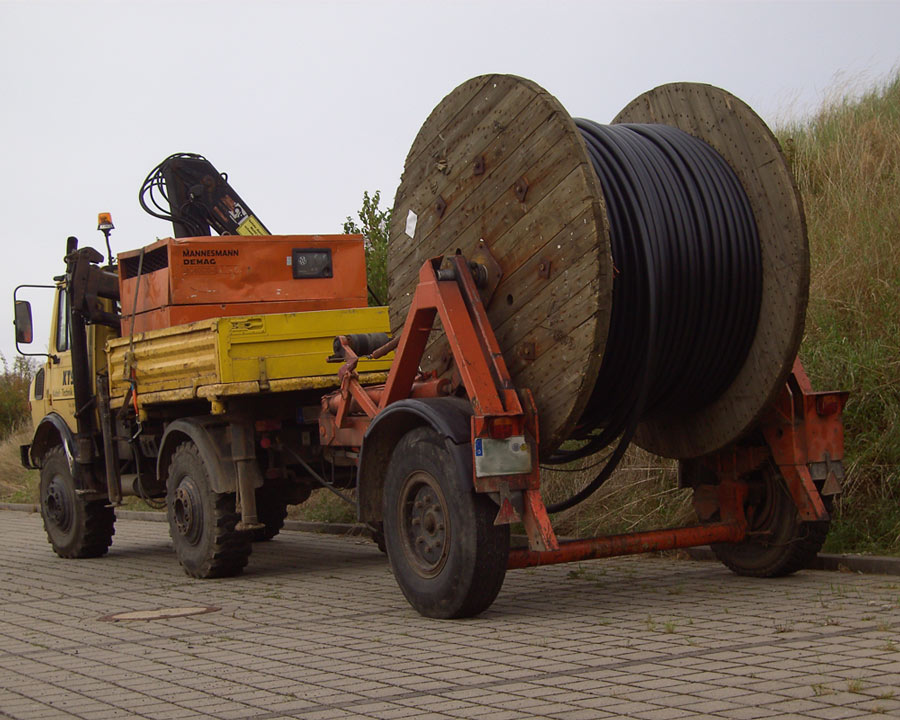

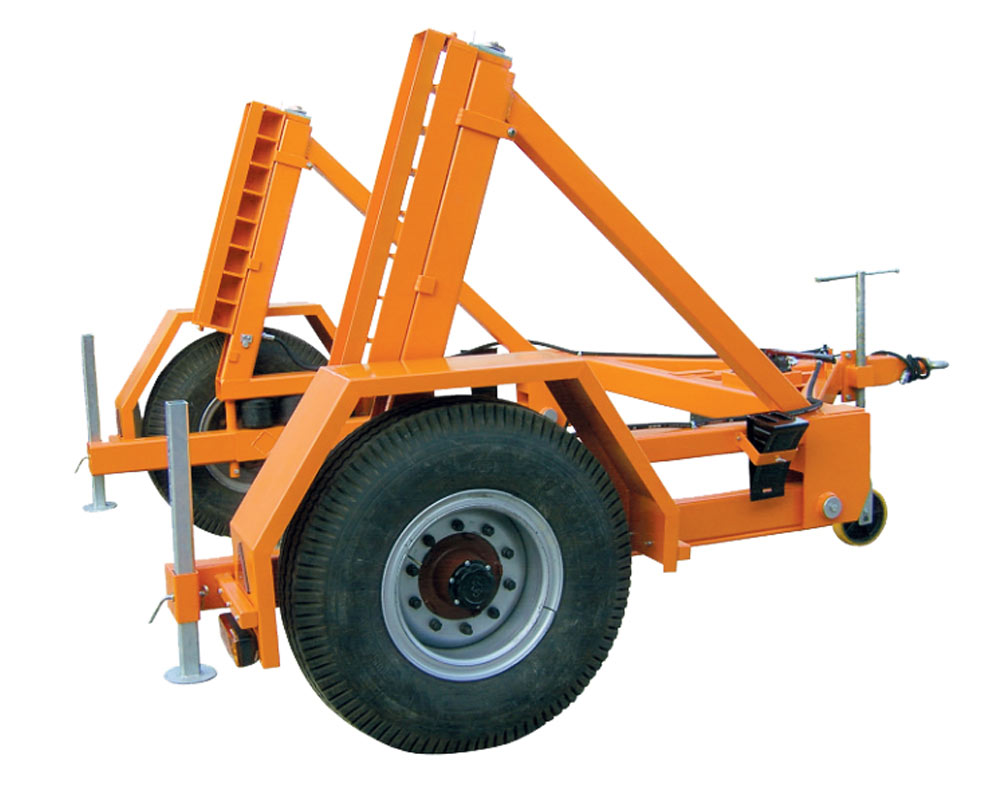

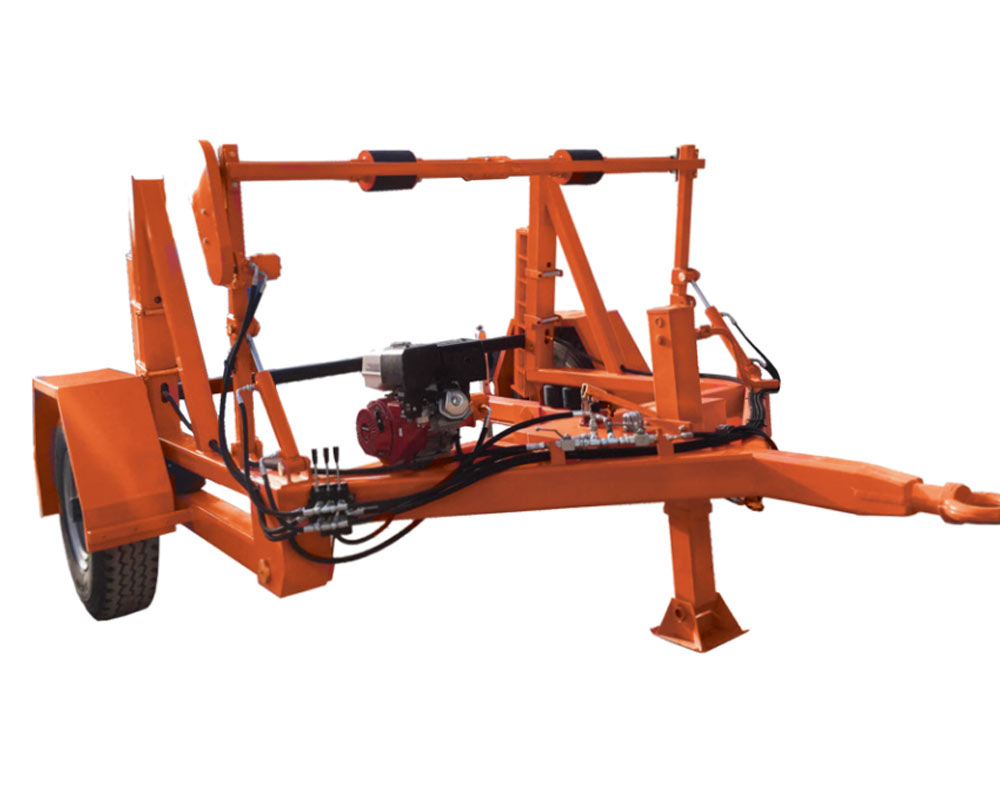

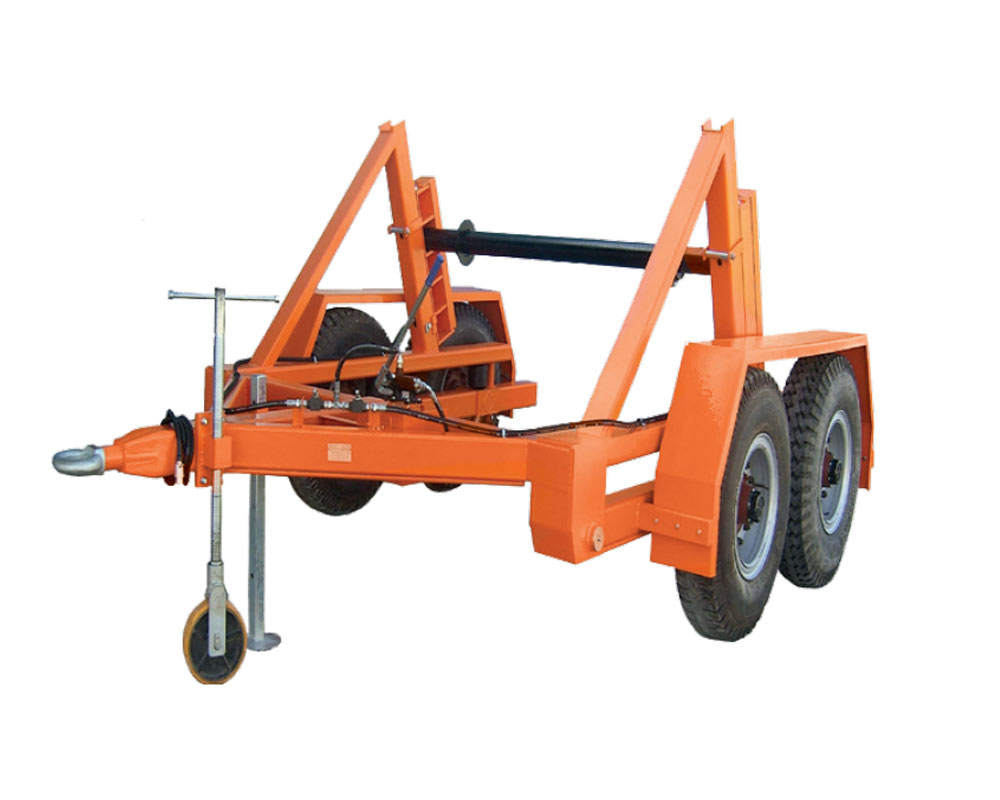

Specializing in cable management products, MITTCO have introduced an ever expanding product portfolio including Cable Drum Trailers. MITTCO can supply a full range of new cable drum trailers and high quality refurbished equipment.
STANDARD
- Heavy Duty Steel Construction
- Hydraulic Hand Pump
- Spindle with 2 fixing clamps
- Lighting System
OPTIONAL
- Petrol Engine
- Diesel Engine
- Rubber Driving Roller
- Payload(Ton): 3
- Max. Speed(km/h) :40
- Dead Weight (kg) :750
- Total Weight (kg) :3750
- Coupling Height(mm) : 610
- Towing Eye (mm) : 30
- Guide fork
- Drum Diameter Min (mm): 1060
- Drum Diameter Max (mm): 2500
- Drum Width Max(mm):1300
- Spindle Diameter (mm): 60-Solid
- Clear Width (mm) : 1580
- Overall Length mm 3100
- Overall Width (mm) : 2300
- Tyres : 8.5R 17.5 PR

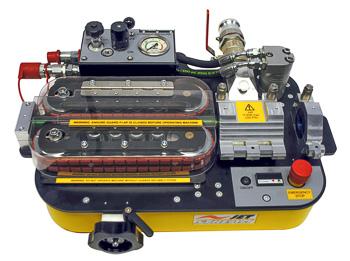

Cable Blowing Machine
A cable blowing machine (also known as a fiber blowing machine) is a machine designed to fit fiber optic cables into telecom ducts and microducts using compressed air or water. MITTCO provides easily transportable and industrial standard cable blowing machine.
- Automatic Cable Centralisation with synchronous high grip profiled drive belts
- Tabletop design
- Variable speed control and single person operation
- Digital cable speed and length monitoring
- Integral air valve and pressure gauge
- Easy cable threading and polycarbonate safety guarding
- Low maintenance, Wheeled Travel case and Tool kit

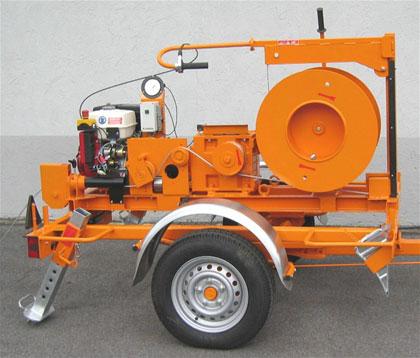

Cabling Winches
MITTCO provides cable winching machines. These can be used to pull in or adjust the tension of a cable. MITTCO cable winching machines are easy to operate.
| Technical Data | WL 2014 |
| Traction force | 20 kN |
| Pulling-in speed | 0-14 m/min. |
| Drive power | 9,6 kW |
| Rope-Ø | 7,5 mm |
| Rope Length | 557 m |
| L x W x H (without trailer) | 1600 x 600 x 920 mm |
| Weight (without trailer) approx | 440 kg |
