Fiber Optics Accessories

Optical Distribution Frame Solutions: Structured frames for organizing, splicing, and interconnecting fiber cables in central offices or data centers.

Description Key Features Capacity / Dimensions Interfaces Supported Applications

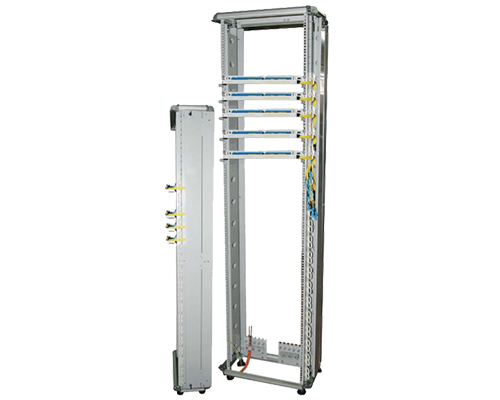

Modular ODF system with superior cable management
  1. 19"/ETSI
  2. 2016 ports
  3. 35mm bend radius,
  4. Interchangeable cassettes
 47U frame (14 modules) LC, FC, ST, MTRJ, E- 2000 Telco COs, FTTX, Utility networks
Front-access modular ODF with swing modules
  1. Swing modules
  2. 35mm bend radius
  3. 2U organizer
 2016 LC ports (144/module), 14 modules/frame LC, FC, ST, MTRJ, E- 2000 Telco COs, FTTX, Utility networks
Cascade swing-out ODF with pull-out trays
  1. 96 ports/5.5U
  2. Modular 19"/ETSI
  3. 40mm bend radius
 96 ports in 5.5U SC, FC, LC, E-2000, etc. COs, Data centers, FTTX, Enterprise
Splice module for large fiber quantities
  1. 96 SC ports in 2U
  2. Angled adapters
  3. Swing-out trays
 2U LC, FC, ST, MTRJ, E- 2000 FTTX, COs, Data centers, LAN/WAN
Fiber termination with telescopic rails
  1. 96/72 ports in 3U
  2. Cable glands, high density
 3U SC, FC, LC, E-2000, MU FTTX, COs, Data centers, LAN/WAN

Splice & Patch Modules

Splice & Patch Modules: Modular units enabling secure fiber splicing and patching in distribution networks.

Model Description Key Features Applications
Splice Only Module Dedicated splicing solution for high- density carrier/transmission environments without patching requirements.
  1. 1U & 2U configurations
  2. Telescopic rail pull-out system
  3. 12/24 port splice cassettes
  4. Special protection tubes for incoming fibers
  5. Optimized bend radius protection
  6. No patching interfaces (splice-only)
 Carrier networks FTTX terminations Utility infrastructure High-density outdoor applications
1U Patch Cord Drawer Professional patch cord storage unit with telescopic sliding system.
  1. 1U height, 19"/ETSI compliant
  2. Telescopic slide-out mechanism
  3. Rear/side cable entry
  4. Advanced cable management
 FTTX, Data Centers, LAN/WAN

Fiber Tree System + Fiber Tree Solutions

Fiber Tree System + Fiber Tree Solutions: Flexible, branched fiber distribution solutions for efficient cable management in FTTH networks.

Model Description Key Features Applications
Fiber Tree Breakout Unit MDU breakout unit for distributing fibers from riser cables to drop tubes.
  1. Plastic construction
  2. 6 fiber tap-off points (3L/3R)
  3. Rotary outlet tubes
  4. Protects cable incisions
  5. Full-front operation
 MDUs, FTTX networks, Inside Plant
Outdoor Polycarbonate Termination Box Pole-mountable enclosure for harsh outdoor FTTX environments.
  1. IP54 rated, UV-resistant polycarbonate
  2. 16-port capacity
  3. In-line/butt cable configurations
  4. GR-326 compliant
  5. Splitter/LGX adapter compatible
  6. Bend radius protection tubes
 Outdoor FTTX, Pole- mounted networks, Building exteriors
Indoor Riser Cable Termination Box Indoor breakout box for riser cables with window- cut (<70mm) splicing.
  1. Polycarbonate/LSZH
  2. 24 splice capacity
  3. In-line/butt cable configurations
  4. GR-326 compliant
  5. Splitter compatible
  6. Non-disruptive to strength member
 Building risers, FTTX terminations
Optical Telecommunication Outlet Pre-terminated FTTH outlet for apartments/offices.
  1. 2×SC/LC duplex adapters (dust- shuttered)
  2. Pre-wired (15-60m G.657 A2 fiber)
  3. IP40 rated 4)Tool-free installation
  4. Anti-twist cable packaging
 MDU FTTH, Office networks

GPON Splitter Modules

GPON Splitter Modules: Passive optical components that divide a single fiber signal into multiple outputs for broadband distribution.

Model Description Key Features Applications
Front Access GPON Splitter Module Carrier-grade modular splitter.
  1. 1:2 to 1:64 splits
  2. 3U aluminum chassis
  3. Front-access adapters
  4. Fiber ID labels
 Carrier Networks, Utilities
1U 4×2:32 Splitter Module High-density 1U splitter for bandwidth branching.
  1. 4× 2:32 splitters in 1U
  2. Brush cable entry
  3. Quick-stud latch system
  4. GR-326 compliant
  5. 19"/ETSI compatible
 FTTX, Data Centers, LAN/WAN

Fiber Patch Panels

Fiber Patch Panels: Termination panels for connecting and managing fiber optic cables in networks.

Model Description Key Features Applications
Angled Panel Laser-safe panel with angled adapters
  1. 45° angled interfaces
  2. Quick-stud cover
  3. GR-326 compliant
 FTTX, Data centers, LAN/WAN projects
1U/2U Swing Type Swing-out panel with integrated cable management
  1. 1U (24 ports)/2U (48 ports)
  2. Swing mechanism
  3. Includes 1.5m pigtails
  4. <35mm bend radius
  5. Front cable manager
 Utility Networks, Telco Hubs
1U/2U Pivot-Type ODF Module with modular splice cassettes 1U/2U Pivot-Type ODF Module with modular splice cassettes (36-port capacity).
  1. Slide-in, pull-out cassettes (12/24-port)
  2. Quick-stud latch for easy access
  3. Rear/side cable entry
  4. Bend radius protection
  5. GR-326 compliant
  6. 19”/ETSI compatible
 FTTX, Data centers, LAN/WAN projects
Fiber Optic Patch Panel with Front Cable Guide for ribbon/non-ribbon fibers. Fiber Optic Patch Panel with Front Cable Guide for ribbon/non-ribbon fibers.
  1. Front cable guides for patch cords
  2. Supports ribbon/non-ribbon splicing
  3. Bend radius protection tubes
  4. Labeling on front/cassettes
  5. Compatible with ST, SC, FC, LC, etc.
  6. GR-326 compliant
 FTTX, Data centers, LAN/WAN projects

MTP/MPO Modules

MTP/MPO Modules: High-density multi-fiber connectors for fast deployment in data centers.

Model Description Key Features Applications
Ultra-high-density fiber management system Ultra-high-density fiber management system
  1. 5,760 LC or 2,880 SC ports per frame
  2. Modular sliding cassettes
  3. Tool-less operation
  4. Aluminum frame
  1. Data Centers
  2. Telecom Networks
  3. FTTX
1U 192F Ultra HD Patch Panel (Sliding) High-density MPO/MTP to LC conversion panel
  1. 192 fibers (8×24F cassettes)
  2. Slidable tray design
  3. Compatible with 8F/12F/24F solutions
  4. Modular expansion
  1. Data Center interconnects
  2. High-density patching
  3. Network aggregation
Pre-Terminated MTP/MPO Cables Factory-terminated backbone cabling
  1. 12/24 fiber versions
  2. MTP/MPO to MTP/MPO or fan-out (LC/SC) - OM3/OM4/Single-mode options
  1. Data Center backbones
  2. Telecom infrastructure
MTP/MPO Cassette Module Transition between MTP and LC/SC
  1. 12/24 fiber versions
  2. Factory-terminated
  3. Aluminum housing
  4. Zirconia sleeve adapters
  1. MTP to LC/SC conversion
  2. High-density patching
Ultra-high-density 3U panel Ultra-high-density 3U panel
  1. 336 fibers (14×24F) in 3U
  2. Integrated management
  3. Modular cassettes
  1. Hyperscale DC
  2. Network backbones

Fiber Optic Cable Trays

Fiber Optic Cable Trays: Support systems for organizing and routing fiber cables in overhead or underfloor installations.

Model Description Key Features Applications
Fiber Duct System S/40 PVC cable management solution
  1. Flame retardant (self- extinguishing)
  2. 120kg load capacity
  3. Halogen-free & UV resistant
  4. Environmentally recyclable
  1. Data Center pathways
  2. Building infrastructure
  3. Outdoor cable runs

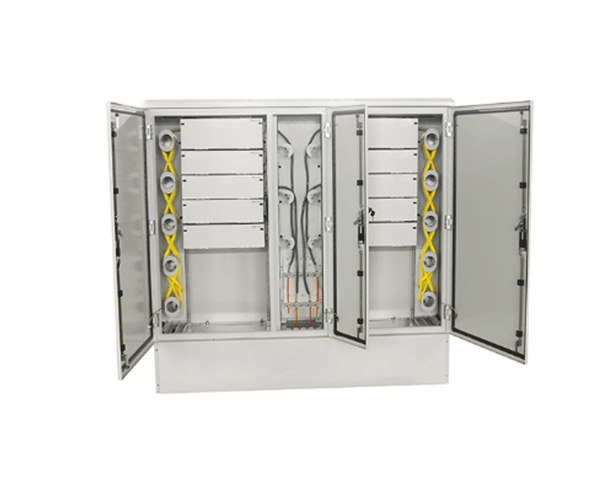

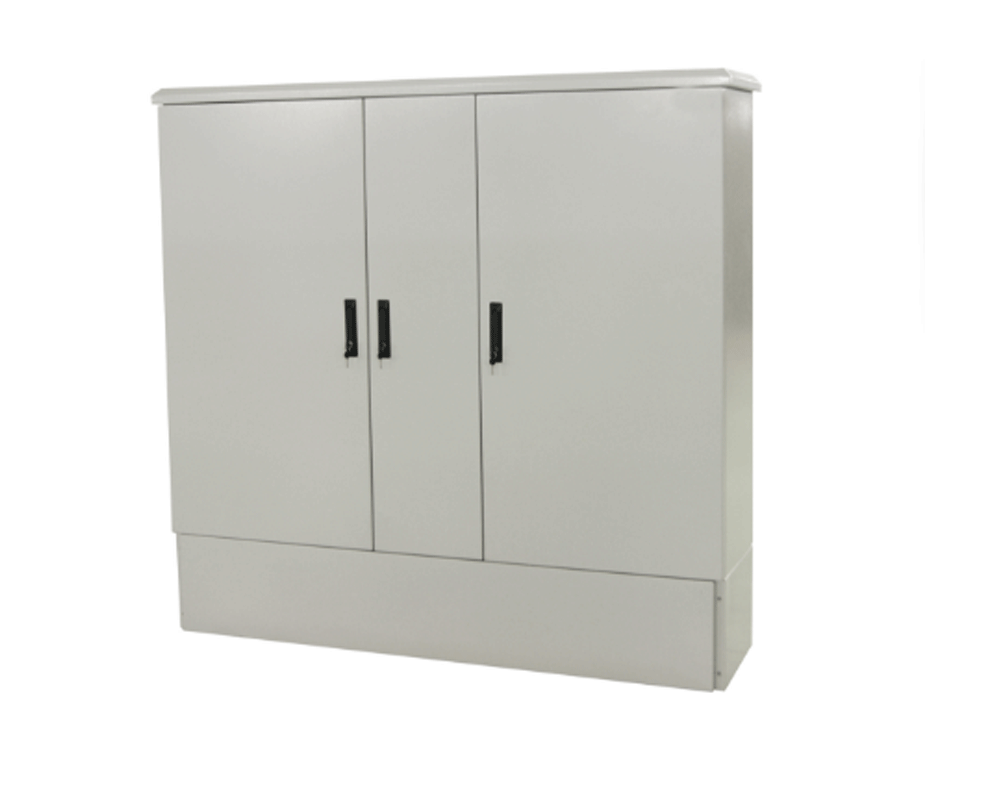

Fiber Cabinet Field Solutions

Type Key Features Security Environmental
Telecom POP Shelter Integrated fiber/DC power, Fire suppression, Remote monitoring, Freecooling Capacity: Up to 3000 subs Protection: Weatherproof Fibre Management: Pre-Cables Vandal- resistant -40°C to +55°C
Polycarbonate Cabinet 34U space, Double door, Reinforced structure Capacity: 576 ports Protection: IP54 Fibre Management: 2x288f splice shelves Hexagonal 3- point lock Impact-resistant
Microduct Cabinet Pre-installed microduct connectors, Swing frame, Incremental blowing Capacity: Compact footprint Protection: IP65 Fibre Management: Air-blown fiber support Standard locks Zone 4 (harsh environments)
Underground Cabinet 304 stainless steel, Retractable, "Diving bell" principle Protection: IP68 Capacity: Variable Fibre Management: Flood-proof Vandal-proof Submersible
    Telecom Cabinet   Integrated OLT, 48V DC, EMS Cooling: Heat exchanger/AC Protection: IP55   Locking system   Double-wall aluminum, thermal isolation
    FTTH Cabinet   Pre-terminated ODF/splitter modules Protection: IP65 2-compartment design   Stainless steel lock   Weatherproof, EN60950 compliant

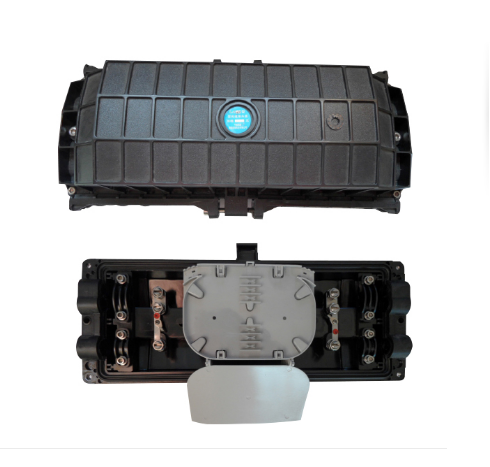

Splice Closures

Splice Closures: Sealed containers protecting fiber splices from environmental damage in aerial, underground, or wall-mounted setups.

Description Key Features Applications

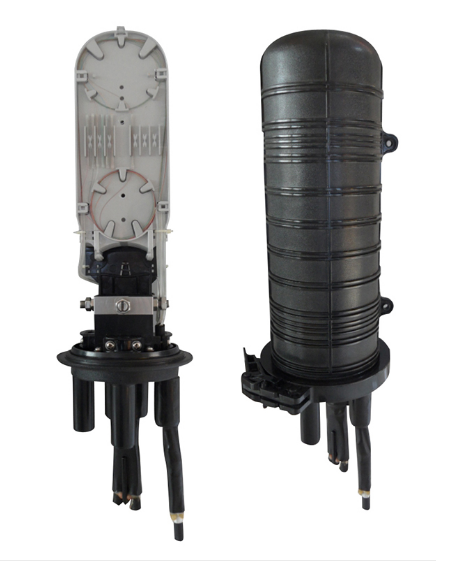

Dome Type SCM Splice Closure for outdoor/underground use with high sealing performance.
  1. IP68 protection
  2. 7 input/output ports
  3. Supports 1:8 splitters
  4. Re-sealable design
  5. Resists abrasion/corrosion
 Underground, aerial, vault, pole mounting
Aerial Type Closure for antenna mounting with easy cable management.
  1. IP55 protection
  2. 4 ports (2 in/out)
  3. 16 drop cable points
  4. Two-layer breathable design
  5. Simple buckle fixing
 Antenna installations, outdoor termination
In-line fiber optic splice closure for outdoor cable joints, high-capacity design.
  1. IP68 protection
  2. 4×20mm + 2×40mm ports
  3. 480F (single-core) / 1944F (ribbon)
  4. No-tool re-entry
  5. 304 stainless steel hardware
 Aerial, underground, wall-mount

Last Mile Solutions

Last Mile Solutions: Connectivity products bridging the gap between service providers and end-users in FTTH/FTTX networks.

Model Key Features Applications
Metal Wall Mountable Outdoor Termination Boxes
  1. IP65 protection
  2. Galvanized Steel or Aluminum
  3. 6-24 ports
  4. Fiber protection tubes
  5. Compatible with multiple connectors
 FTTX, outdoor installations
Outdoor Fiber Cross Connect Cabinet
  1. IP65 protection
  2. Wallmountable
  3. 48 fiber terminations
  4. LC Duplex adaptors
  5. Splitter compatibility
  6. Cable storage and protection
 Cross Connect, FTTX Network, outside plant
Dual Door Wall Mountable Optical Distribution Box
  1. Dual doors for flexibility and security
  2. Up to 96 fibers
  3. Modular structure
  4. Suitable for interconnect, cross connect, co- location
 FTTX, Indoor building distribution, LAN Networks

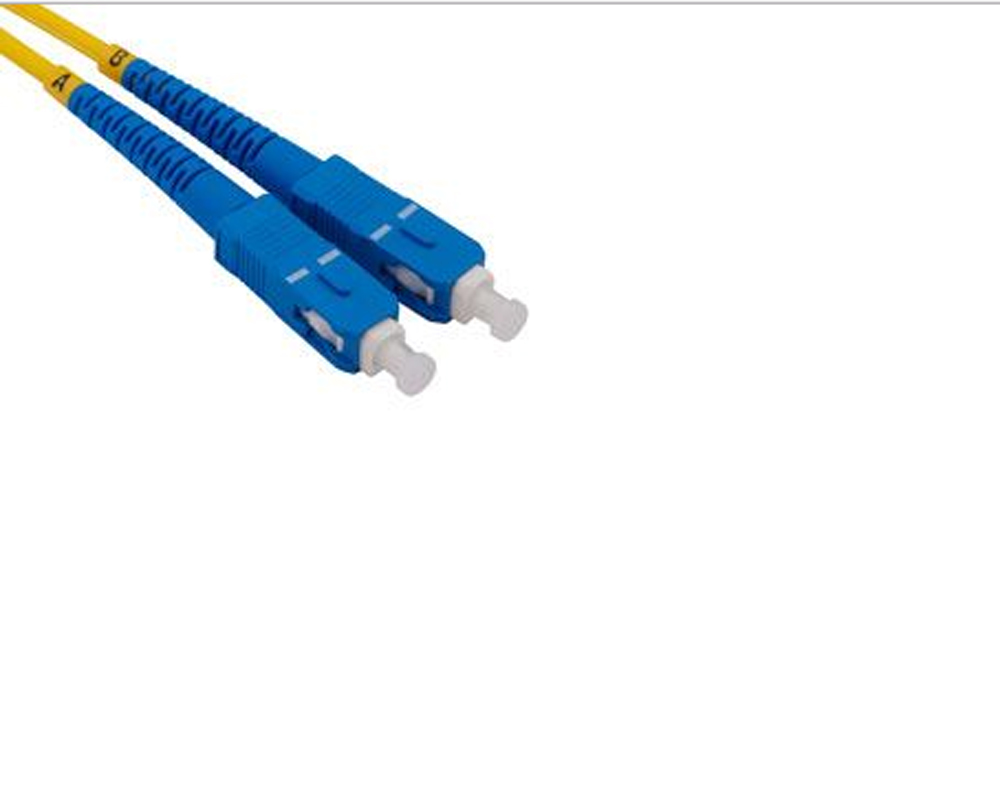

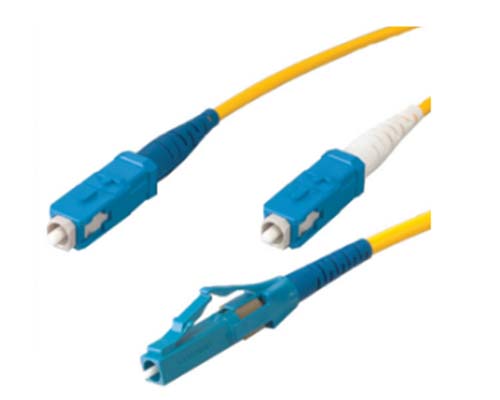

PATCH CORDS

PATCH CORDS: Pre-terminated fiber cables with connectors (LC/SC/FC/ST) for quick device or panel interconnections.

Category Description Product Application Product Benefits
5E FTP Shielded patch cord for Gigabit Ethernet (100MHz) 100/1000 Base-T, 100VG-Any LAN
  1. Foil shielded
  2. TIA/EIA 568B
  3. RJ45 plugs
6 UTP Unshielded patch cord for Gigabit Ethernet (250MHz) 100/1000 Base-T, 100VG-Any LAN
  1. Unshielded
  2. TIA/EIA 568B
  3. RJ45 plugs
6 FTP Shielded patch cord for Gigabit Ethernet (250MHz) 100/1000 Base-T, 100VG-Any LAN
  1. Foil shielded
  2. TIA/EIA 568B
  3. RJ45 plugs
6A UTP Unshielded patch cord for 10G Ethernet (500MHz) 100/1000 Base-T, 10G Base
  1. Unshielded
  2. TIA/EIA 568B
  3. RJ45 plugs
6A FTP Shielded patch cord for 10G Ethernet (500MHz) 100/1000 Base-T, 10G Base
  1. Foil shielded
  2. TIA/EIA 568B
  3. RJ45 plugs
6A S/FTP Superior shielding for 10G Ethernet (500MHz) 100/1000 Base-T, 10G Base
  1. Individually shielded
  2. TIA/EIA 568B
  3. RJ45 plugs
