Ribbon Cables

Ribbon cables (armoured/unarmoured) enable high-productivity mass splicing with 4/8/12 UV-acrylate-coated fibres, supporting counts up to 1000 for easy stripping and identification.

Product Name Fiber Specs Construction Key Features
Ribbon Indoor Riser Central Tube Cable
  1. G.657.A1 SMF
  2. 200/250μm
  3. ≤0.36 dB/km @1310nm
  1. Dry central tube
  2. LSZH jacket
  3. Aramid yarn reinforcement
  1. UL 1666 riser-rated
  2. 40% faster mid-span access
  3. 600N tensile load
Ribbon Indoor Plenum Central Tube Cable
  1. G.657.A1 SMF
  2. 200/250μm
  3. ≤0.38 dB/km @1310nm
  1. OFNP plenum jacket
  2. Dry tape wrap
  3. Kevlar strength
  1. NFPA 262 compliant
  2. Air-handling spaces
  3. >5000 flex cycles

High-Density & Outside Plant Cables

Product Name Fiber Specs Construction Key Features Performance Data
Ribbon All-Dielectric Monotube OSP Cable
  1. R G.657.A1 (96f-864f)
  2. G.657.A1 (1728f)
  3. 250μm
  1. Gel-free monotube
  2. Water-blocking tape
  3. FRP central member
  1. GR-20 compliant
  2. 3000N/10cm crush
  3. No metallic components
  1. Attenuation: ≤0.34 dB/km @1310nm
  2. PMD: ≤0.04 ps/√km
  3. Operating temp: -40°C to +70°C
Ribbon OSP All-Dielectric Microduct Cable
  1. G.657.A1/A2
  2. 200/250μm
  1. 5.5mm microduct design
  2. HDPE outer sheath
  1. Air-blown installation
  2. 2km max blow distance
  1. Bend radius: 15x OD
  2. Tensile load: 1500N

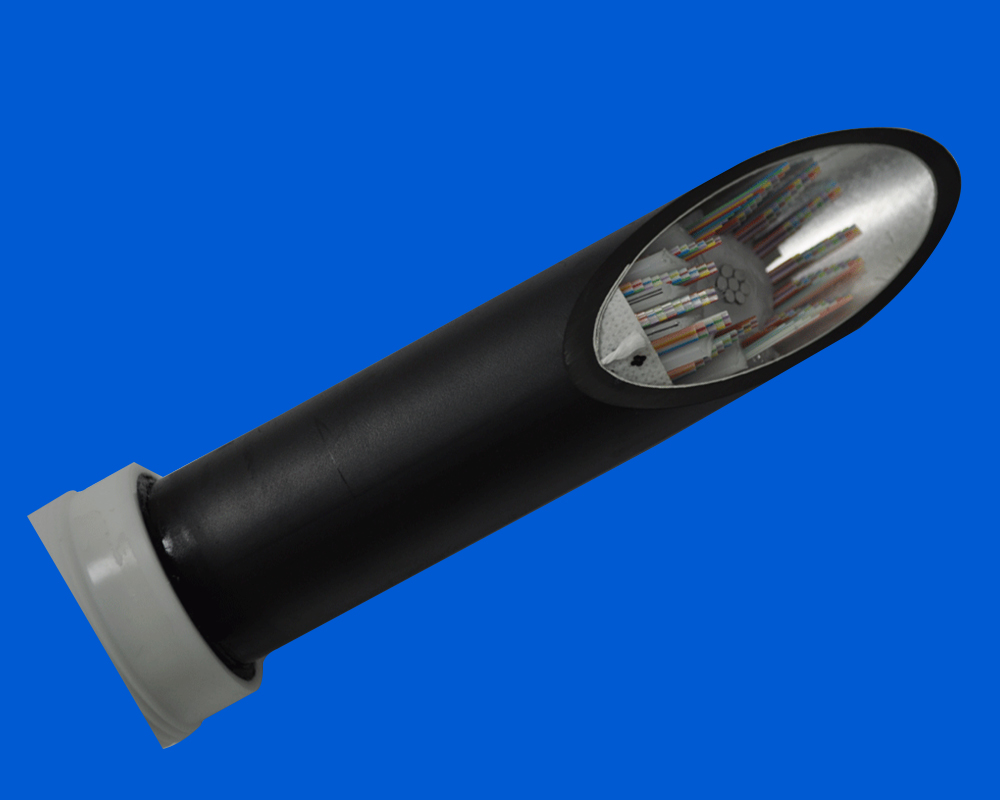

Ribbon Ultra-High Density 3,456-Fiber Cable
  1. G.657.A2
  2. 200μm
  1. Stacked ribbon matrix
  2. LSZH jacket
  1. 21mm OD for 3456 fibers
  2. 7.5mm bend radius
  1. Crush: 4000N/10cm
  2. Weight: 350kg/km

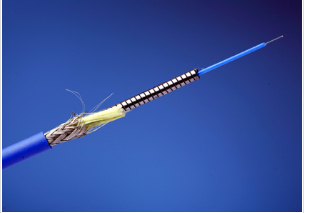

Armored Outside Plant (OSP) Cables

Product Name Core Design Armor/Fiber Specs Key Features Environmental Ratings

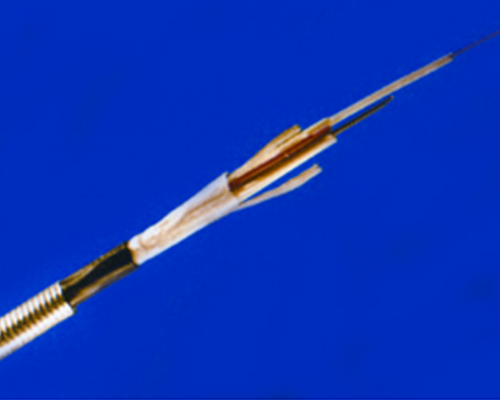

Ribbon Armored Monotube OSP Cable Single monotube
  1. Corrugated steel armor
  2. R G.657.A1
  3. 250μm fibers
  1. 4000N crush rating
  2. Gel-free dry core
  3. Rodent-proof
  1. Temp: -40°C to +70°C
  2. UV-resistant HDPE jacket

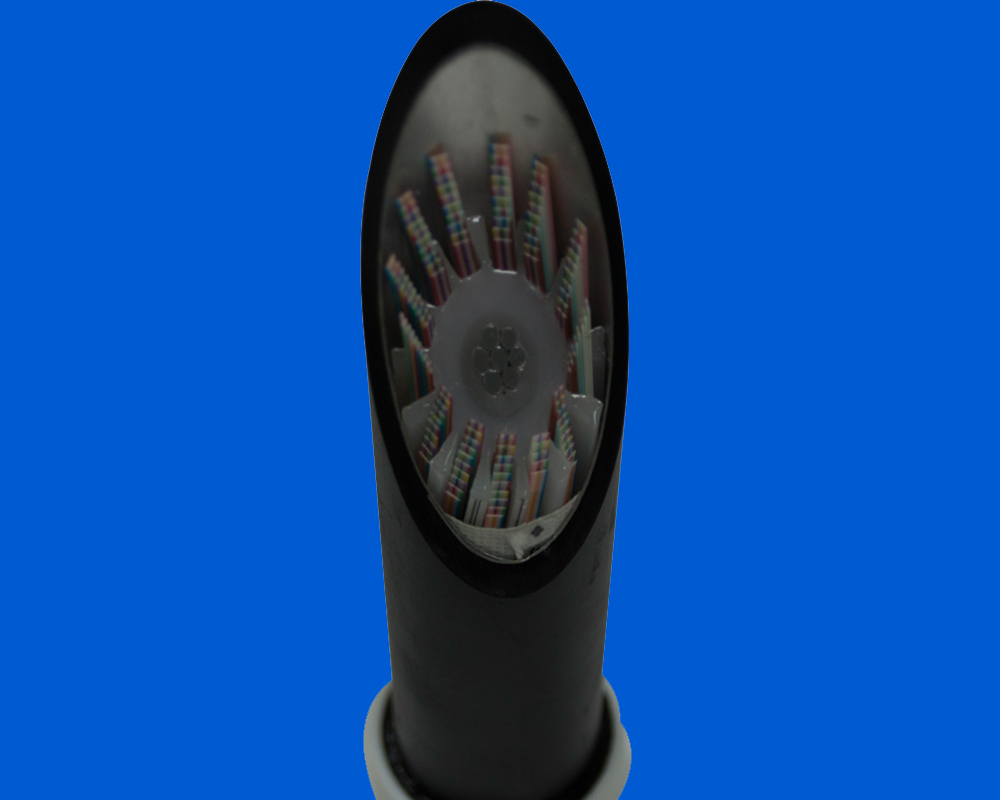

Ribbon Armored Slotted Core OSP Cable 6-8 radial slots
  1. Double-layer steel armor
  2. G.657.A1
  3. 200/250μm fibers
  1. 5000N crush rating
  2. Slot-separated fiber groups
  3. Easier mid-span access
  1. Submersible
  2. Ice load resistant

Underground Cable

Designed in robust unitube/multitube constructions for direct burial, duct pulling, and blowing, are ideal for backbone, access, and feeder/distribution networks.

Product Type Construction Armor/Protection Strength Specs Fiber Count Applications Key Advantages
Armored Cable Unitube/Multitube Steel Tape/FRP/Glass Yarn 10,000N tensile, 4,000N/10cm crush 2F-432F (Loose), 96F-1152F (Ribbon) Underground Burial, Backbone, Access, Feeder Extreme crush/tensile protection
Unarmoured Cable Loose Tube/Ribbon Rodent/UV Resistant Jacket 3,500N tensile, 2,000N/10cm crush 2F-432F (Loose), 96F-1152F (Ribbon) Duct Pulling/Blowing, Backbone, Access Lightweight, duct-optimized

Aerial Cable

Weather-resistant, high-strength cables designed for overhead installations, with UV protection and optional steel support.

Product Type Construction Tensile Strength Fiber Count Span Range Applications Protection
ADSS Cable Loose Tube (Aramid Yarn) Up to 22,000N 2F–432F 30m– 500m Backbone, Access, FTTX, CATV UV/Rodent- resistant
Aerial Fig. 8 Cable Loose Tube + Steel Messenger Up to 5,500N 2F–432F 30m– 100m Access, Feeder, LAN, Last Mile UV/Rodent- resistant

Microduct Cables

Slim, high-density cables for microduct blowing in FTTX/last-mile networks, available in multiple sizes for space-efficient backbone/distribution installations.

Product Type Construction Diameter Range Fiber Count Key Features Environmental Applications
Standard Micro Unitube/Multitube 2.5mm– 11.8mm 2F–432F
  1. Bend- insensitive
  2. Low friction
 -20°C to +60°C FTTX, Last Mile
Slim Micro (5G) Multitube Only 5.3mm– 11.5mm 4F–432F
  1. 15% slimmer
 -30°C to +70°C 5G Backhaul
Ultra-Slim Micro Multitube Only 5.0mm– 11.3mm 4F–576F
  1. Max density (576F)
 -40°C to +70°C 5G+/6G Backbone
Nano-Thin Micro Central Strength Member <5.0mm 2F–288F
  1. Water- blocked
  2. G.657A1 fibers
 -40°C to +70°C Harsh Environments
Blown Unitube Single Loose Tube 3.5mm– 6mm 2F–24F
  1. Pre- installable
  2. FTTH- optimized
  3. Ruggedized jacket
 -30°C to +70°C FTTH Drop Cables

FTTH Cables

Last-mile connectivity in single/multimode options, with LSZH sheaths for indoor safety, ideal for FTTX and premises distribution

Product Type Fiber Count Core Design Key Features Fiber Options Safety/Performance
Indoor FTTH Cable 1F–6F Loose/Tight Buffer Gel-free, bend-insensitive (15mm, G.657A2) Single/Multimode LSZH Flame-retardant

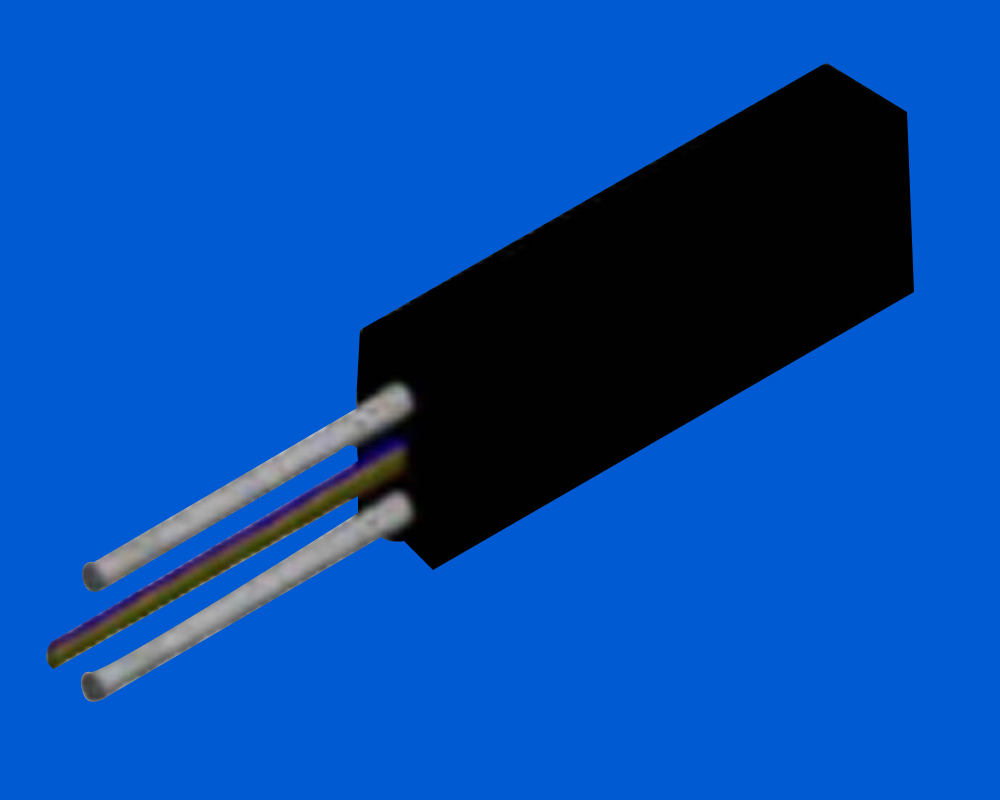

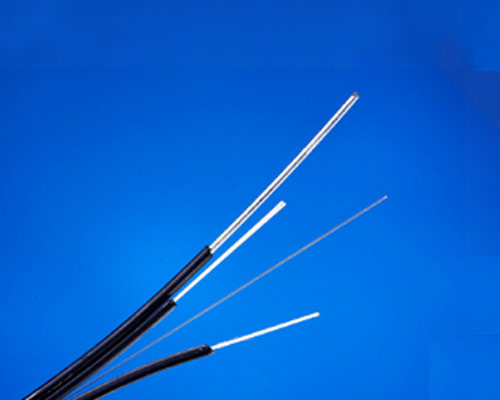

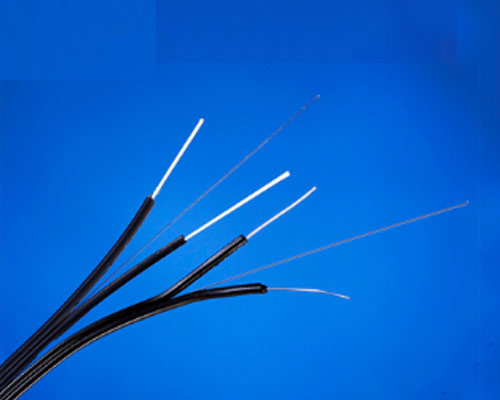

Flat Drop Cable 1F–2F Messenger + Strippable Aerial span: 25m, Steel/FRP messenger Single Mode (G.652D) UV-resistant + Flame- retardant

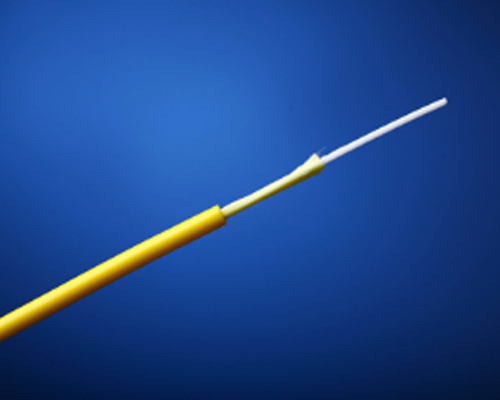

Simplex Fiber 1F Tight Buffer (600/900µm) Precision 1F for one-way data Single/Multimode LSZH, IEC/UL Certified
Duplex Fiber 2F (Zipcord) Zipcord Design Bidirectional data transfer Single/Multimode OFNR/OFNP Rated
Premise Distribution 2F–144F Tight Buffered Bundles Plenum/Riser rated Single/Multimode OFNP/OFNR Certified

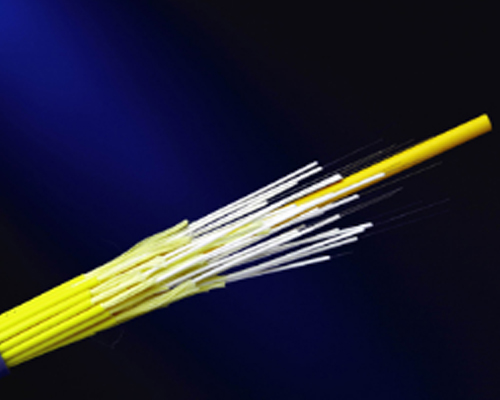

Breakout Cable 4F–24F Jacketed Simplex Cables
  1. Individual fiber breakout
  2. FTTH/FTTD optimized
 Single/Multimode (600/900µm) LSZH + OFNP/OFNR

Micromodule Cables

Water-blocked, FRP-armored fiber cable with G.657/G.652D fibers for backbone/last-mile networks, meeting IEC/ANSI standards (-40°C to +70°C).

Product Type Construction Armor/Protection Strength Specs Applications Key Advantages
Transport Network (Water- Blocked Core Cable) Optical fibers laid freely in water- blocked modules Polyethylene sheath with FRP Glass yarn or aramid yarn Midspan, Backbone, Access, Feeder & Distribution, Last Mile, ISP Wide temperature range (- 40°C to +70°C), water- blocked protection
Micromodule Overhead Cable Jelly-filled micromodules with water-blocked interstices Not specified (typically PE/LSZH) Embedded steel rod Midspan, Backbone, Access, Feeder & Distribution, Last Mile Crush resistance, jelly-filled protection
Overhead Ultra Light- Weight (ULW) Cable High fiber density in legacy cable diameter UV-resistant sheath Breakload safety design Midspan, Backbone, Access, Feeder & Distribution, Last Mile Lightweight, legacy compatibility, UV/harsh environment resistant
