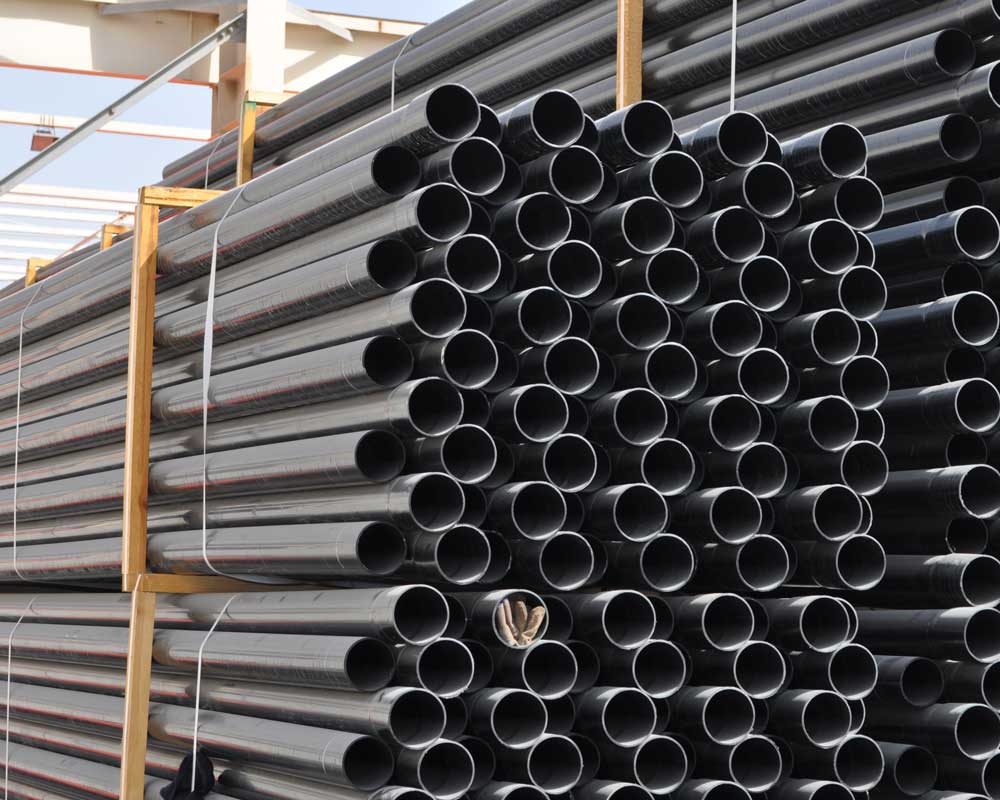

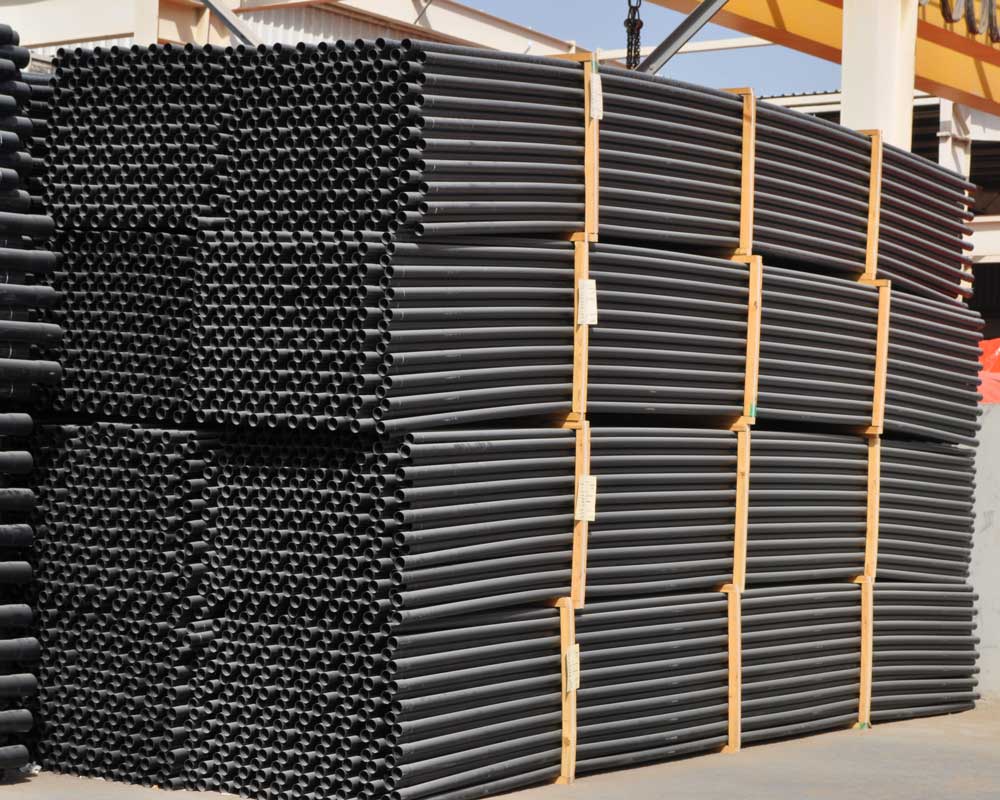

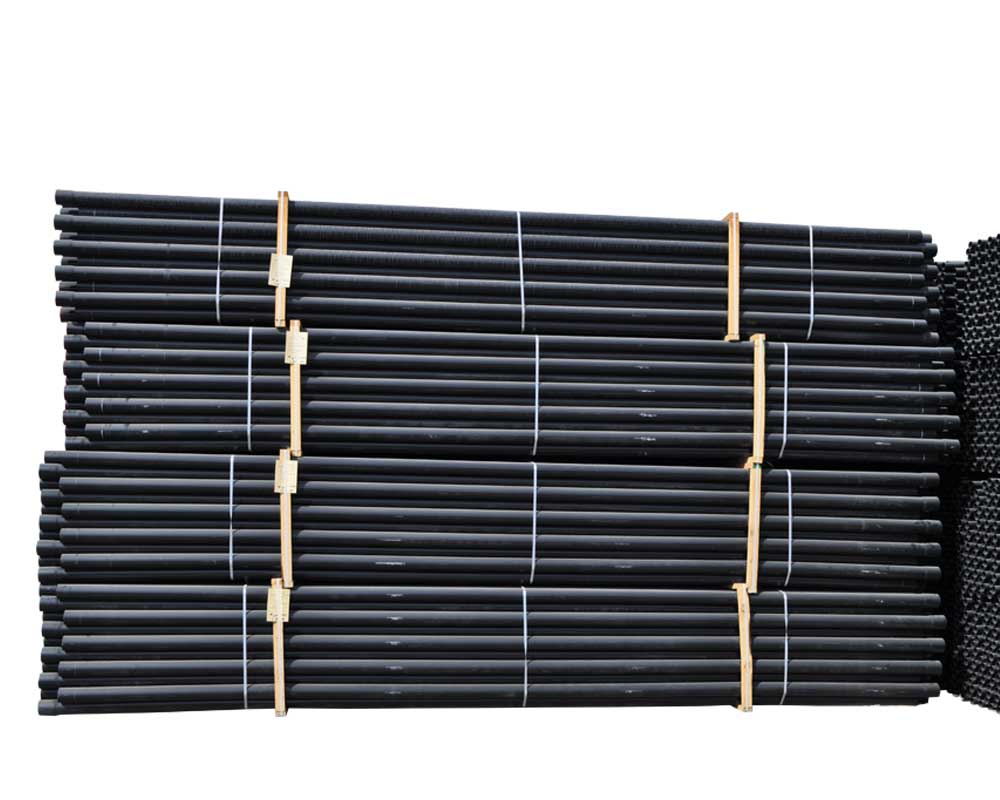

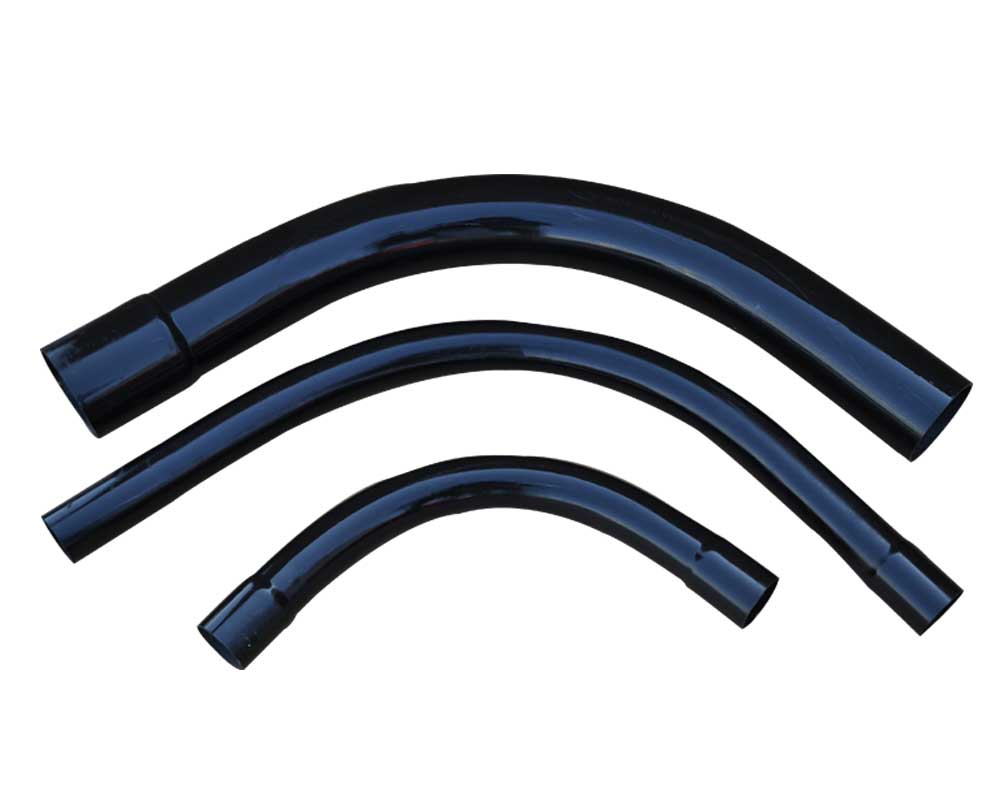

UPVC DUCTS

Category Description Features / Properties
UPVC DUCTS UPVC (unplasticized polyvinyl chloride) pipes are reliable, sustain in aggressive environments, and resist chemical/electrochemical corrosion. Widely used in sewage lines and exterior drainage due to strength, stiffness, cost-effectiveness, and smooth inner walls encouraging water flow.
  1. Density: 1.4 – 1.46 gr/cc
  2. Tensile Strength: 45–55 MPa
  3. Elongation: 80–150%
  4. Compressive Strength: 59 MPa
  5. Modulus of Elasticity: 3000 MPa
  6. Specific Heat: 0.24 Cal/g/°C
  7. Thermal Conductivity: 0.12 KCal/m/h/°C
  8. Linear Expansion: 0.08 mm/m/°C
  9. Volume Resistivity: 10¹⁵ Ohm/cm
  10. Flammability: Self-extinguishing

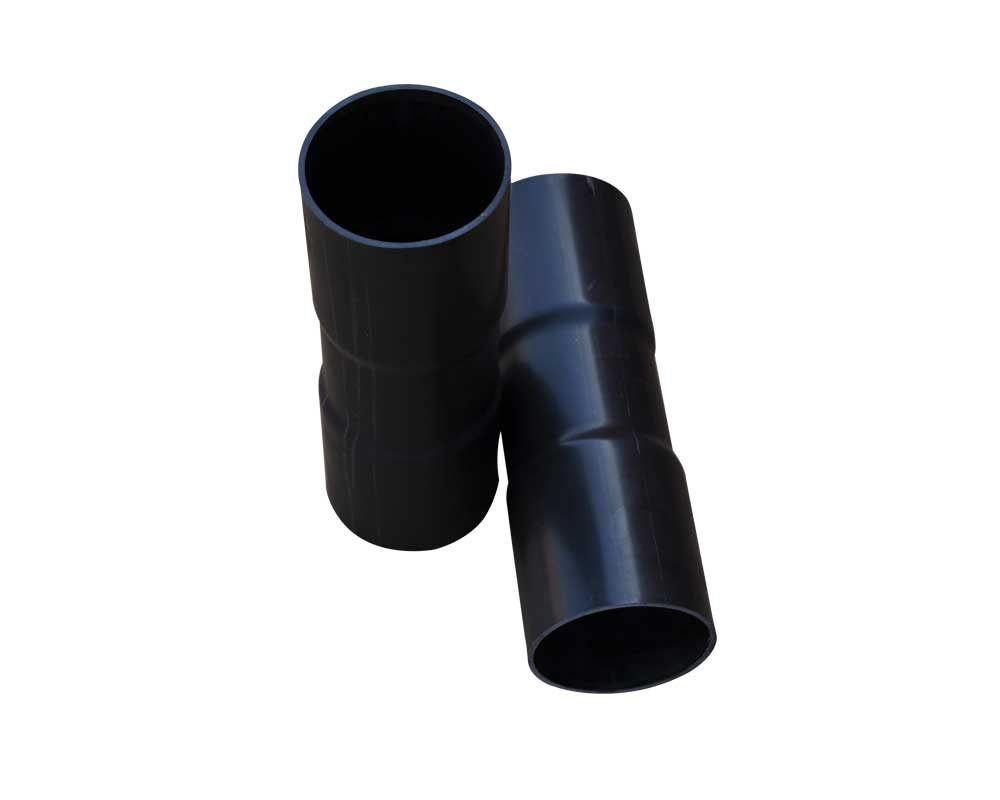

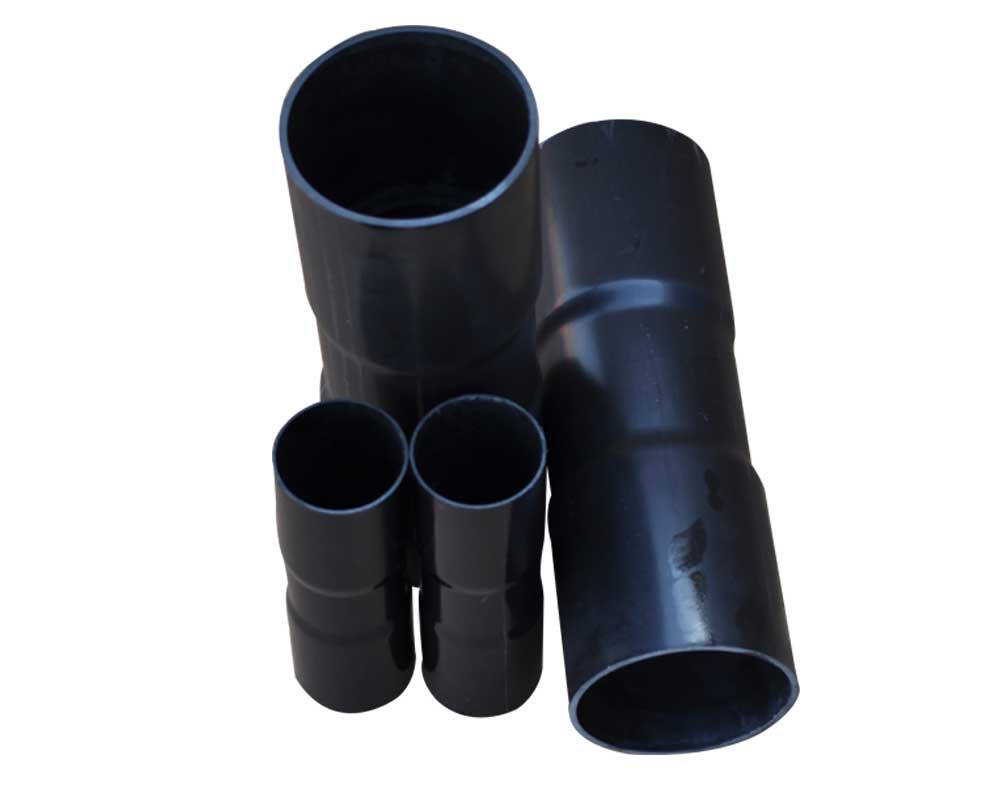

UPVC COUPLERS

Category Description Features / Properties
UPVC COUPLERS UPVC (unplasticized polyvinyl chloride) pipes are reliable, sustain in aggressive environments, and resist chemical/electrochemical corrosion. Widely used in sewage lines and exterior drainage due to strength, stiffness, cost-Effectiveness, and smooth inner walls encouraging water flow.Used in agriculture, chemical industry, and dairy processing for durability and leak-proof applications. Made from high-quality material ensuring strength and easy installation.
  1. Density: 1.4 – 1.46 gr/cc
  2. Tensile Strength: 45–55 MPa
  3. Elongation: 80–150%
  4. Compressive Strength: 59 MPa
  5. Modulus of Elasticity: 3000 MPa
  6. Specific Heat: 0.24 Cal/g/°C
  7. Thermal Conductivity: 0.12 KCal/m/h/°C
  8. Linear Expansion: 0.08 mm/m/°C
  9. Volume Resistivity: 10¹⁵ Ohm/cm
  10. Flammability: Self-extinguishing.
  11. Odorless and hygienic
  12. High corrosion resistance
  13. High chemical resistance
  14. Smooth bore
  15. Self-extinguishing
  16. Maintenance-free
  17. Long-lasting
  18. Economical

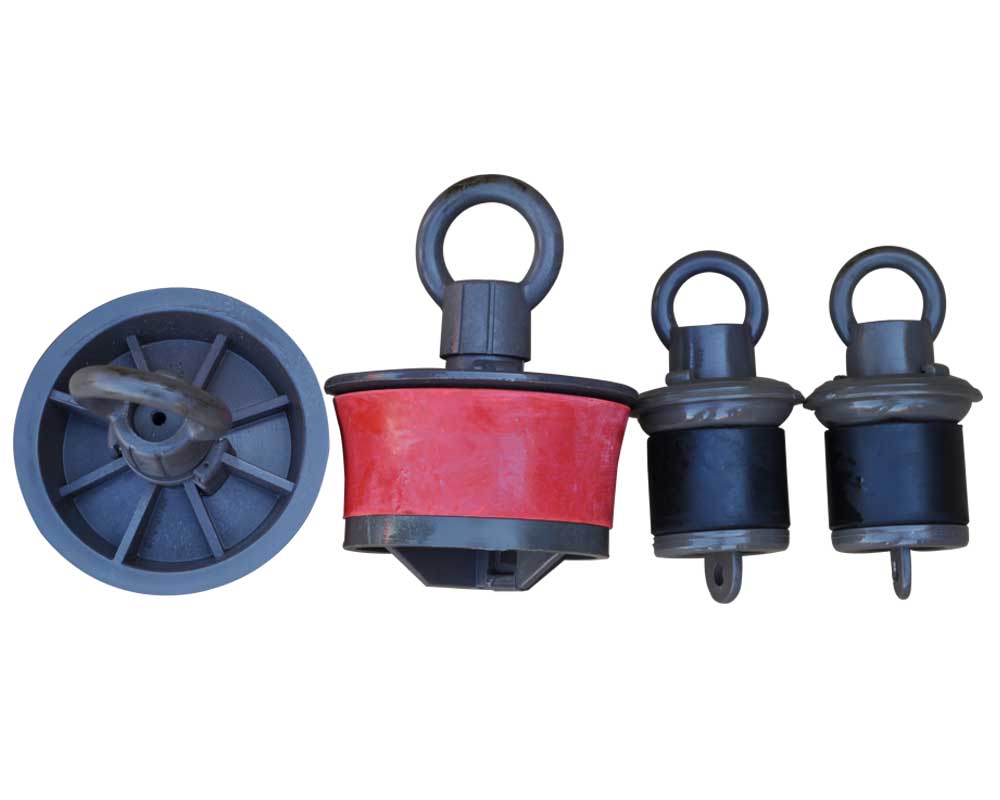

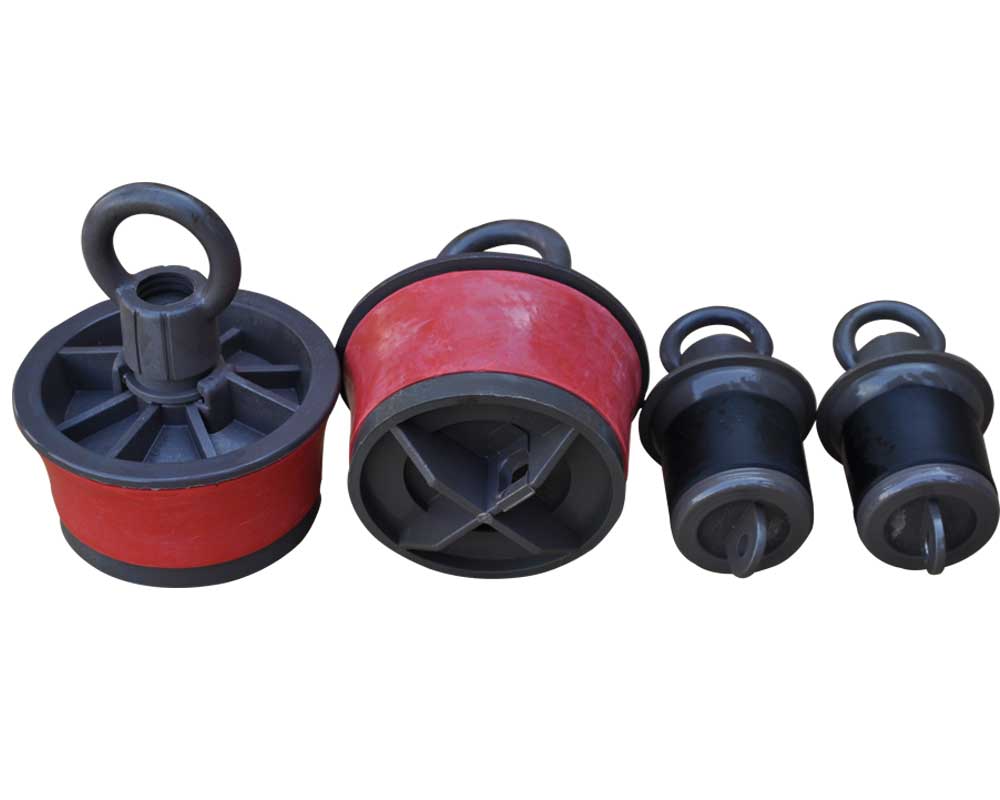

JACKMOON DUCT

Category Description Features / Specifications
JACKMOON DUCT Triplex duct plugs for sealing, organizing, and supporting up to 3 subducts, pipes, or cables. Provide long-term watertight and airtight seals. Designed for round openings such as conduits, fittings, and wall penetrations.
  1. Split design for retro-fitting without disassembly
  2. Anchor and organize subducts/multiple ducts
  3. Prevent duct-edge abrasion to cables
  4. Expandable gasket supports cable movement without leakage
  5. Supports cables at the top of risers
