Cable & Antenna Analyzers

Analyzers that measure VSWR, return loss, and cable faults to ensure optimal signal transmission in wireless networks.

Model Type Key Functions Frequency Range Compatibility Key Features

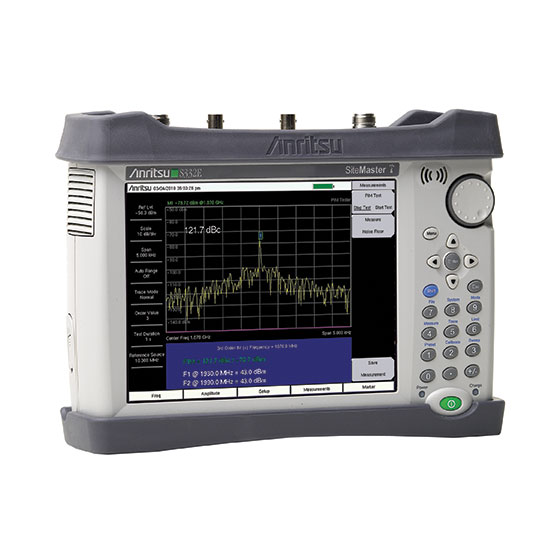

Site Master S331L Cable & Antenna Analyzer
  1. VSWR
  2. Return Loss
  3. DTF
  4. Cable Loss
 5 kHz – 6 GHz 2G/3G/4G/5G, DAS, Satcom
  1. Touchscreen
  2. Auto-tests
  3. Rugged field design
MS2085A Spectrum Analyzer
  1. RF Spectrum Analysis
  2. Interference Detection
 9 kHz – 6 GHz Cellular, Wi-Fi, Broadcast
  1. Real-time spectrum
  2. High dynamic range
MS2089A Hybrid Analyzer All S331L + MS2085A functions 5 kHz – 6 GHz All S331L + MS2085A use cases
  1. All-in-one
  2. Touchscreen + keypad
Site Master S331P Ultraportable Analyzer
  1. VSWR
  2. Return Loss
  3. DTF
  4. Cable Loss
 150 kHz – 6 GHz LTE-U, DAS, Public Safety
  1.  USB-powered
  2. Smallest/lightest Site Master
  3. Smart Aligner Android app
  4. Rugged (IP-rated splash/dust resistant)
  5. Line Sweep Tools (LST) for PDF/HTML reports

Passive Intermodulation (PIM) Testers

PIM Testers detect unwanted signal distortion in cellular networks.

Model Type Key Functions Compatibility Key Features

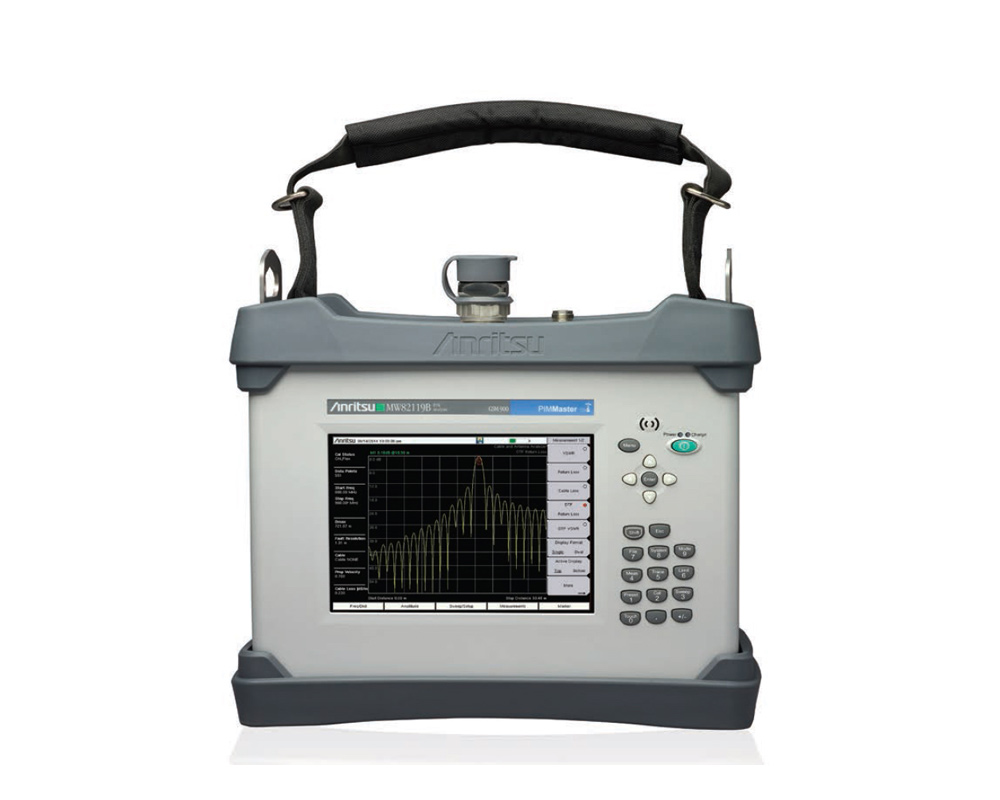

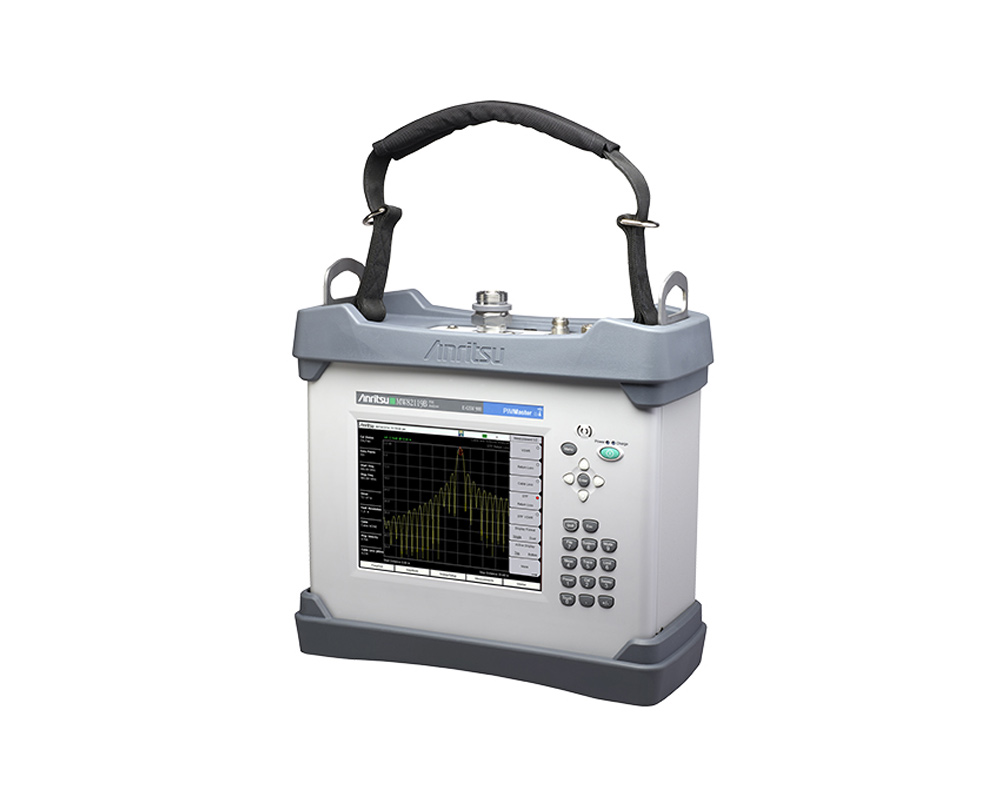

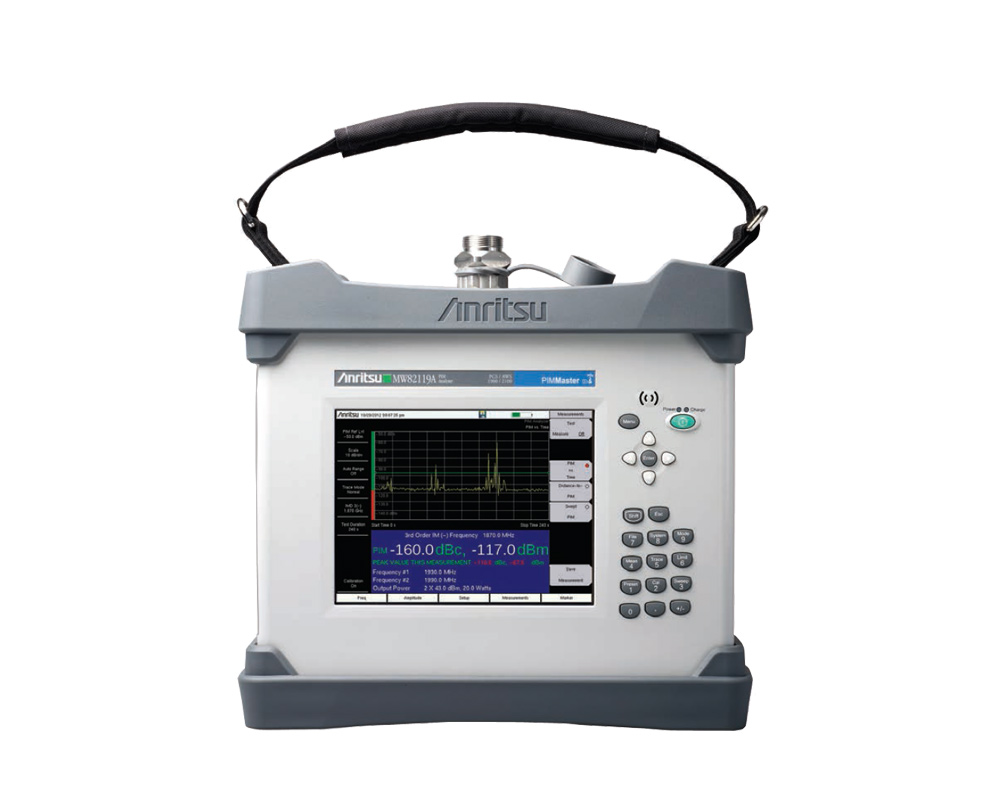

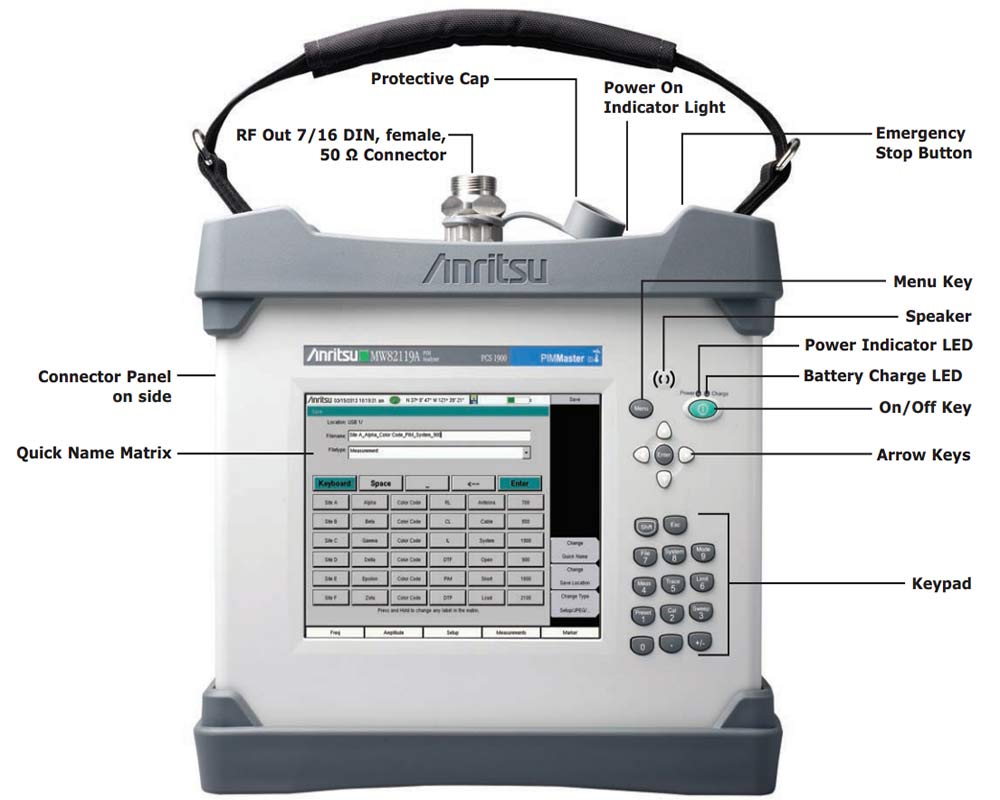

PIM Master MW82119B Passive Intermodulation (PIM) Analyzer
  1. PIM Testing (40W)
  2. Distance-to-PIM (DTP)
  3. Optional Cable/Antenna Analysis (with Site Master add-on)
 2G/3G/4G/5G, DAS, RRH Installations
  1. 40W High-power PIM testing
  2. Daylight-viewable touchscreen
  3. Rugged field design
  4. Smart Aligner Android app integration
  5. 3-year warranty

RF Signal Generators & Analyzers

RF Signal Generators create test signals; Analyzers measure RF performance

Model Type Key Functions Frequency Range Key Features

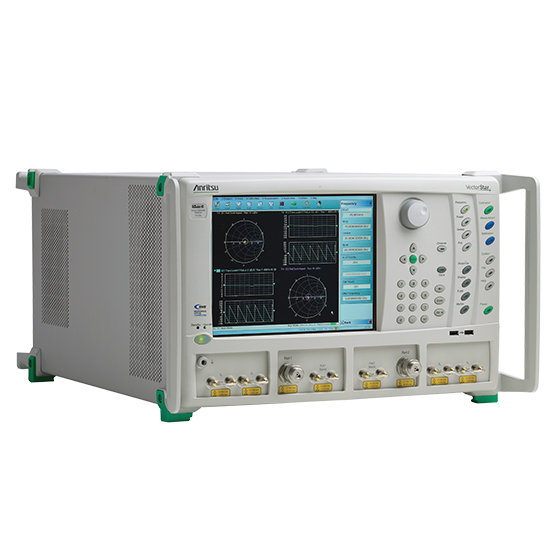

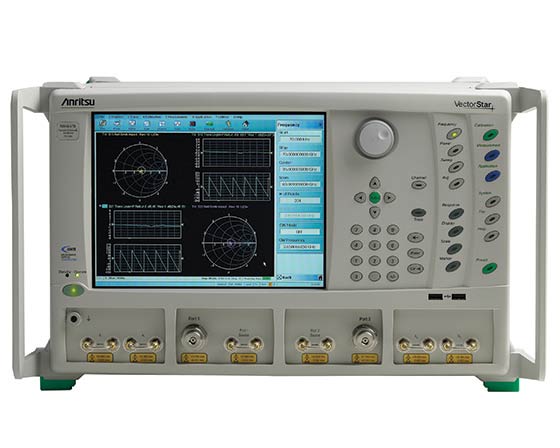

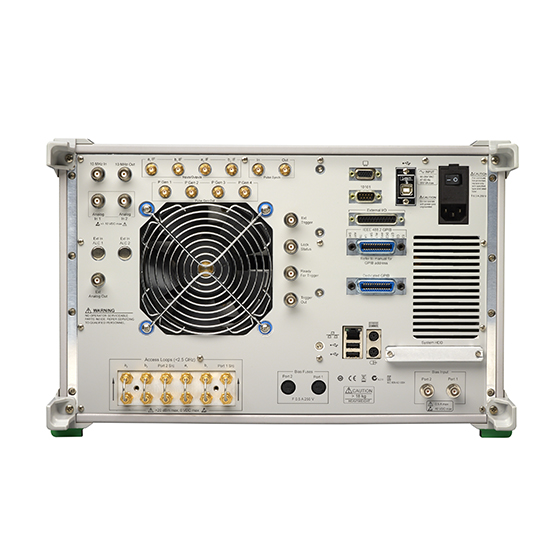

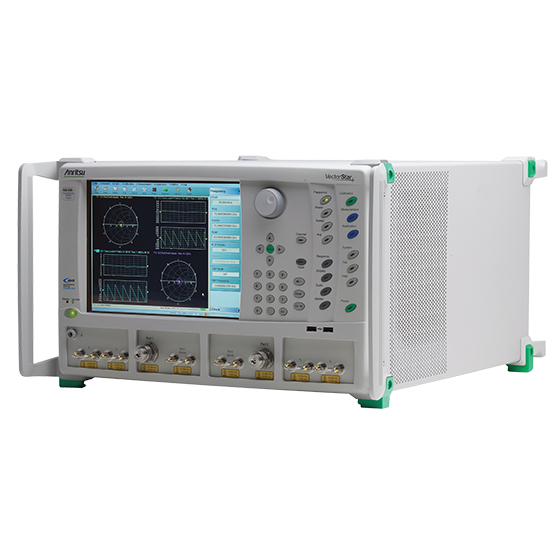

MS4640B VNA Premium Network Analyzer
  1. S-parameter measurements
  2. Pulse measurements (2.5 ns)
  3. Differential testing
  4. Noise figure (70 kHz–125 GHz)
  5. Spectrum analysis
 70 kHz – 70 GHz (Up to 145 GHz with modules)
  1. Real-time IMD analysis
  2. 2.5 ns pulse resolution
  3. Dual-source differential testing
  4. Integrated spectrum analyzer (70 kHz–220 GHz)
  5. Cold-source noise measurements
  6. 3-year warranty
          ME7848A Series         Opto- Electronic Network Analyzer
  1. O/E, E/O & O/O measurements
  2. Balanced/differential analysis
  3. S- parameters
  4. NIST-traceable calibration
           70 kHz - 110 GHz (extendable to 1.1 THz)
  1. Modular 850/1310/1550nm configs
  2. 142dB dynamic range
  3. MN4765B (O/E) + MN4775A (E/O)
  4. 12-term calibration
  5. Optional SPA (220GHz), UFX, IMDView, PulseView
MS2830A Cost- Optimized Signal Analyzer
  1. Cellular/WLAN/PMR testing
  2. Noise figure (NF) measurements
  3. Built-in analog/vector signal generator
  4. Modulation analysis (LTE/W- CDMA/WLAN)
  1. 3.6/6/13.5 GHz models: -  Cellular (2G-5G sub-6) -  WLAN -  PMR/LMR
  2. 26.5/43 GHz models: - Microwave/mmWave equipment
  1. 9 kHz – 43 GHz (model- dependent)
  2. ±0.3 dB level accuracy
  3. Low power (110 VA)
  4. All-in-one options
  5. Signal generator (vector/analog)
  6. Audio analyzer
  7. Modulation analysis (optional software)
MS2840A Phase Noise Specialist
  1. Phase noise measurements
  2. TRx testing
  3. Noise figure (to 44.5 GHz)
  1. Microwave backhaul
  2. PMR
  3. Radar/5G components
  1. 140 dBc/Hz phase noise
  2. 125 MHz BW (option)
  3. Built-in signal generator
MS2850A Ultra- Wideband Analyzer
  1. GHz real-time BW
  2. 5G NR/mmWave analysis
  1. 5G mmWave
  2. Satellite comms
  1. 32GB memory
  2. >140 dB dynamic range
  3. PCIe/USB 3.0
